Dormer

Dormer High Speed Steel Twist Jeweler's Drills

$25.50

Quantity

High-quality twist drills from Dormer have straight shanks and are accurately ground then carefully tempered. They are the highest-quality jeweler's drills available.

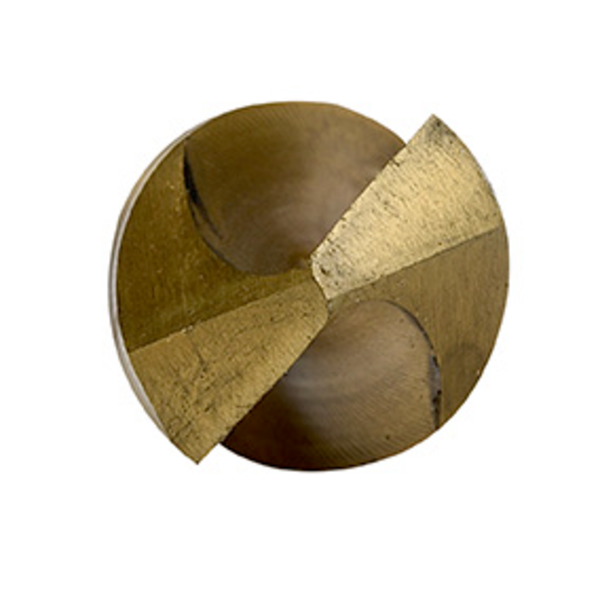

These drills have a standard spiral flute design and straight shank with a 118° conical point, high-speed-steel with a bright uncoated finish for 4xD right-hand rotation drilling without pecking in metals. Suitable for a wide variety of materials including gold, silver, low and medium carbon steel, cast iron, wood, plastics, and resins. Individual size drills are available in 10-piece packs, or jump-start your selection with a 20-piece drill set including A100 wire gauge drills in sizes #61-#80 packaged in a convenient Dial-A-Tool plastic case with slide cover that allows access to only the size you need while keeping all others securely in their place.

Euro Twist drills are also available as a lower-cost option, and drills with 3/32" shank are available for use with your rotary tool handpiece in a drill press stand.

Drill #	Diameter - IN	Diameter - MM	Drill #	Diameter - IN	Diameter - MM
30	0.1285	3.264	56	0.0465	1.181
31	0.1200	3.048	57	0.0430	1.092
32	0.1160	2.946	58	0.0420	1.067
33	0.1130	2.870	59	0.0410	1.041
34	0.1110	2.819	60	0.0400	1.016
35	0.1100	2.794	61	0.0390	0.990
36	0.1065	2.705	62	0.0380	0.965
37	0.1040	2.642	63	0.0370	0.940
38	0.1015	2.578	64	0.0360	0.914
39	0.0995	2.528	65	0.0350	0.889
40	0.0980	2.489	66	0.0330	0.838
41	0.0960	4.438	67	0.0320	0.813
42	0.0935	2.378	68	0.310	0.787
43	0.0890	2.261	69	0.0292	0.734
44	0.0860	2.184	70	0.0280	0.712
45	0.0820	2.083	71	0.0260	0.660
46	0.0810	2.057	72	0.0250	0.635
47	0.0785	1.944	73	0.0240	0.610
48	0.0760	1.930	74	0.0225	0.572
49	0.0730	1.854	75	0.0210	0.533
50	0.0700	1.778	76	0.0200	0.508
51	0.0670	1.702	77	0.0180	0.457
52	0.0635	1.613	78	0.0160	0.406
53	0.0595	1.512	79	0.0145	0.369
54	0.0550	1.397	80	0.0135	0.343
55	0.0520	1.321
